Category: CHIA LERN

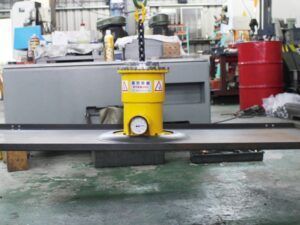

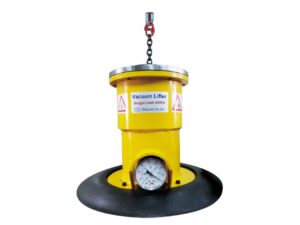

Vacuum Lifting device with single suction pad by CHIA LERN

Does not require external power source, external controls, or any complex accessories. The device generates its own vacuum function to lift objects or sheet metal.
The device can be used in factories, warehouses, and any other environments where items need to be lifted and moved.

QUOTE

Hotline

Description
Specification

Increases productivity in arrangement and movement
High safety for the user
Eliminates device damage and fire/explosion hazards
Eliminates surface damage of the items being transported
Improves storage usage and organization
Simple operation: Reliable and fast up/down motion control, reliable vacuum suction and release control.
Low operating and maintenance costs

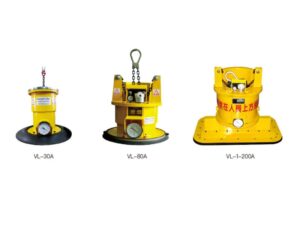

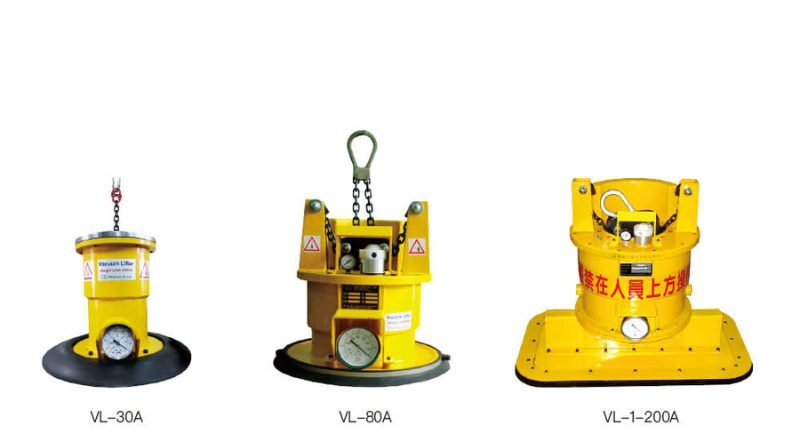

Model No	Capacity	No of pads	OD of Pads	Beam length (mm)	Net weight (kg)
VL-1-200	2000	1	500x1000	x	270
VL-80A	800	1	480	x	93
VL-30A	300	1	355	x	200
