Introduction to CNC-controlled pipe cutting and beveling machine:
CNC-controlled pipe cutting and beveling machine: It is a fully automatic machine, super fast, with cutting and beveling controlled by a CNC operating system. This perfect machine is suitable for large needs of preparing welding pipes and pipe fabrication. The machine is equipped with fully automatic front and rear clamping, a cooling system, automatic beveling,… all these features are controlled by a pre-programmed touch screen, setting the working parameters in advance is very simple and easy.
Technical specifications of CNC-controlled pipe cutting and beveling machine:

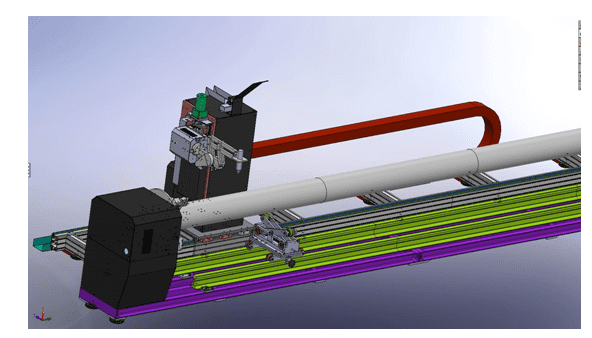

- Model: BEVEL-6P520-SEOver-view Structure
2. Machine data.
3. Basic components and technical specifications: 4. PLASMA POWER SUPPLY: 5. Machine site requirements (Must be prepared before machine arrives at user site)6. Cutting Samples:
This product is being distributed at Vietweld with many years of business experience in machinery and equipment for mechanical engineering, machine manufacturing, industry… Vietweld always asserts itself with quality products at attractive prices, and enthusiastic customer care until customers use the product proficiently.
| Effective cutting diameter | 40-520mm | |||
| Effective cutting length | 6000mm | |||
| Plasma cutting ability | – | |||
| Maximum pipe weight | 1000kg | |||
| Cutting type | Plasma | |||
| Rated speed | 0-15 rpm | |||
| Ovality of pipe | ≤2% | |||
| Number of pipe supporters | 4 sets | |||
| Maximum bevel angle | Less than 45 º | |||
| Command | ±1º | |||
| Thequantityof linkageaxis | 4Axis | |||
| TorchLiftingDistance(Z) | ≤270mm | |||
| Workingprecision | ±0.2 mm /M | |||
| No. | Item | Quantity | Unit | Technical Specifications |
|---|---|---|---|---|
| 1 | BEVEL-6P520-SE | 1 | Set | After stress relief treatment, the beam is strong with heat dissipation and welding. This proves that the beam is strong and difficult to deform. |
| 2 | Operation method | Single drive | ||
| 5 | Y-axis driving system | 1 | Set | Rotary tube AXIS: Japan PANTHER servo 750W digital servo motor with control box and gearbox |
| 6 | X-axis driving system | 1 | Set | TORCH LENGTH MOVING ACCORDING TO PIPE DIRECTION: Japan PANTHER servo 400W digital servo motor with control box and gearbox |
| 7 | Torch axis | 1 | Set | Stepper motor with driver and reducer |
| 8 | Rotary axis | 1 | Set | Stepper motor with driver and reducer |
| 9 | Z-axis steering system | 1 | Set | Shaft lifting up and down |
| 10 | Motor and servo cables | 3 | Set | Japanese servo shielded cables |
| 11 | Gear reducer | 2 | Set | German brand speed reducer |
| 12 | CNC controller | 1 | Set | 10-inch pipe beveling controller CNCUT-10A-PIPE |
| 13 | Air and cable for X and Y axis movement | 2 | Set | Heavy-duty industrial cable chain |
| 14 | Electric air control | 2 | Set | Taiwan valve with Korean pipe for the machine. |
| 15 | ||||
| Item | Content | |||
| 1 | User must make cement foundation. (Seller will provide cement foundation drawing.) | |||
| 2 | Voltage requirement： （1）3×380v±10%/50Hz，220v±10%/50Hz （2）Three-phase voltage stability less than ±5% （3）Three-phase voltage unbalance less than 2.5% （4）Suggested using voltage-stabilized source. Note: Grounding resistance ≤10. | |||
| 3 | Compressed air pressure requirement (Plasma cutting)： （1）Gas flow requirement：0.9m3/min （2）Gas pressure：8.3kg/cm2 （3）Dew-point temperature not exceed 5 centigrade： oil content≤0.003ppmsolid particle≤0.01micron （4）Suggested using oil free air compressor, freezing dryer and ultra filter（system cannot have rust components）. | |||
| 4 | Cutting pipe must have smooth oval surface with diameter less than 5 mm. Comply with ISO standard. | |||
| 5 | Working temperature: -10°C -45°C Humidity: <90%, no condensationSurrounding: Ventilated, no large vibration |
