Introducing the Dual-Head Milling Machine HM – 400NC(Fanuc)
NC CONTROLLED SIMULTANEOUS 2-EDGE MILLING MACHINE
Model: HM – 400NC(Fanuc)
Origin: PARA MILL – Taiwan
Main Technical Specifications:
– Control System: Fanuc 0i – MF
– Machining Capabilities:
+ Width and length of the workpiece: Min 20×20 mm; Max 400×400 mm
+ Height of the workpiece: 150 mm (cutter diameter 160 mm)
+ Load capacity of the table: 250 kgs
– Z-axis table travel: 600 mm
– X, Y-axis travel: 210 mm
– Z-axis feed rate: 15 meters/minute
– X/Y feed rate: 15 meters/minute
– Manual feed rate: 1 ~ 1500 mm / minute
– Main spindle taper: NT50
– Diameter of main spindle nose: 40 ~ 125 mm
– Main spindle speed: 200 ~ 1600 rpm
– Milling cutter diameter: 160 mm
– Main spindle motor: 20 HP
– Z-axis motor: 3 kW
– X/Y-axis motors: 3kW x 2
– Servo motor for W-axis standing clamp: 2.5kW
– Rotary table A-axis motor: 1.6kW
– Rotary table: 250 mm
– Rotational angle capability: 0/40/90/135 degrees
– Machine weight: 6.5 tons
– Machine dimensions: 3450 x 2300 x 2300 mm
Standard Equipment Included:
– Solid one-piece machine base structure
– Robust NT50 main spindle
– 5 automatic axes
– User-friendly touch screen
– Precise rotary table
– Includes standing clamp
– Complete hydraulic system
– 02 sets of chip conveyors
– Halogen work light
– 3-color warning light
– Tools and tool box
– Main spindle oil temperature control system
– Fanuc control system

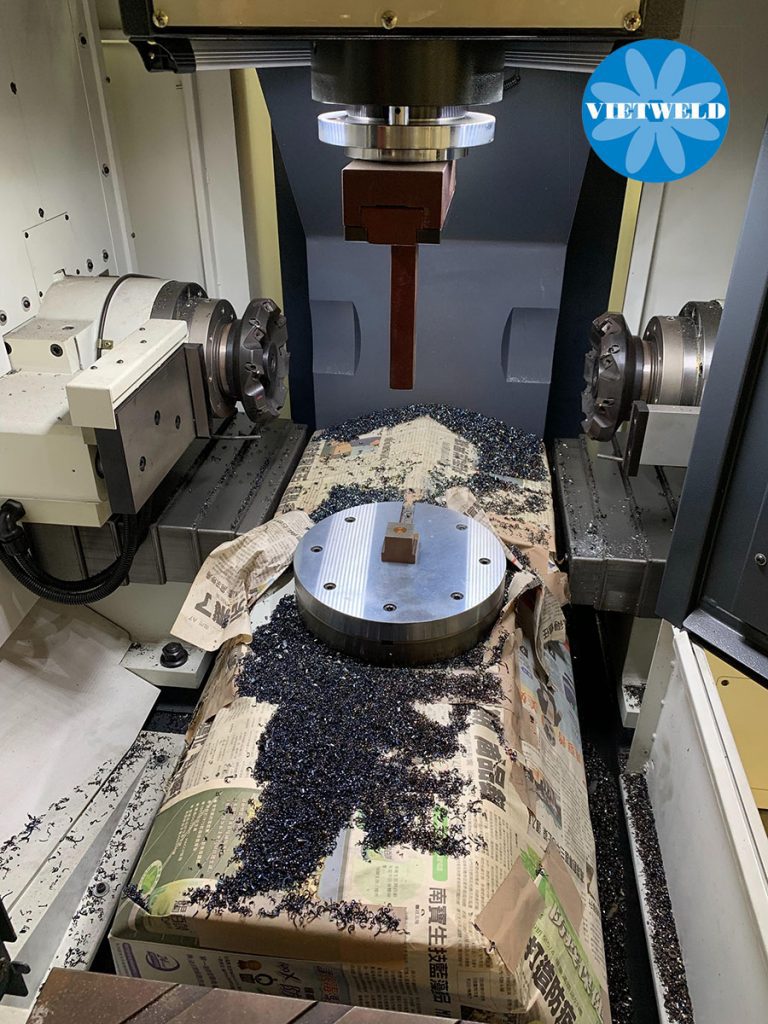

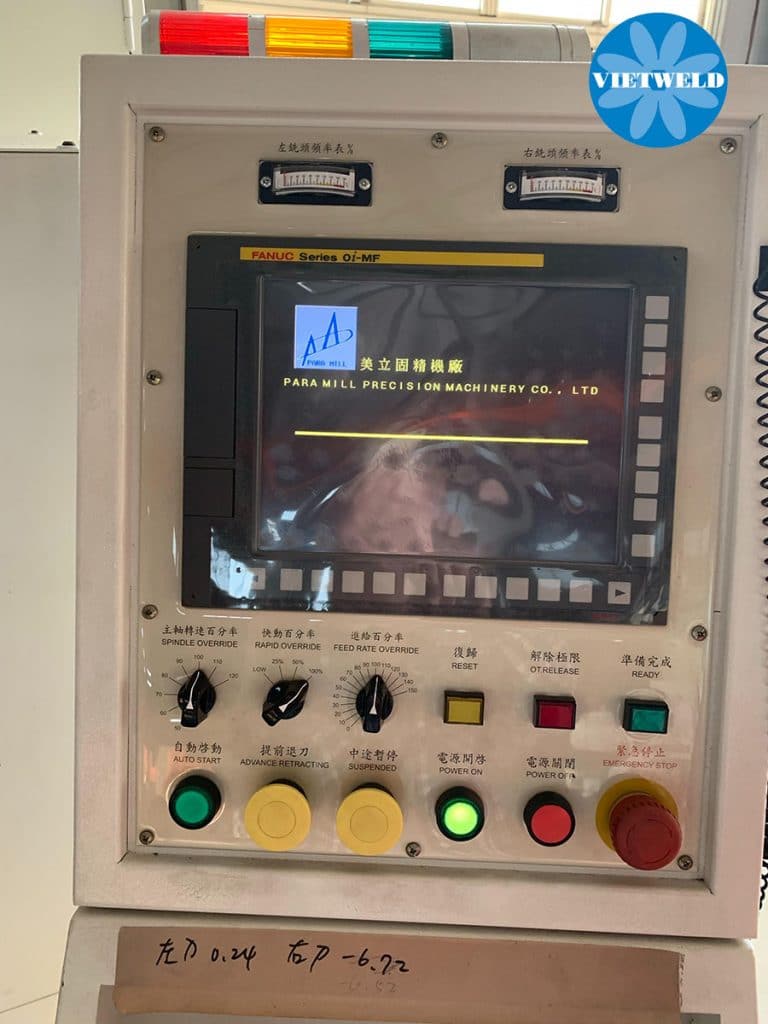

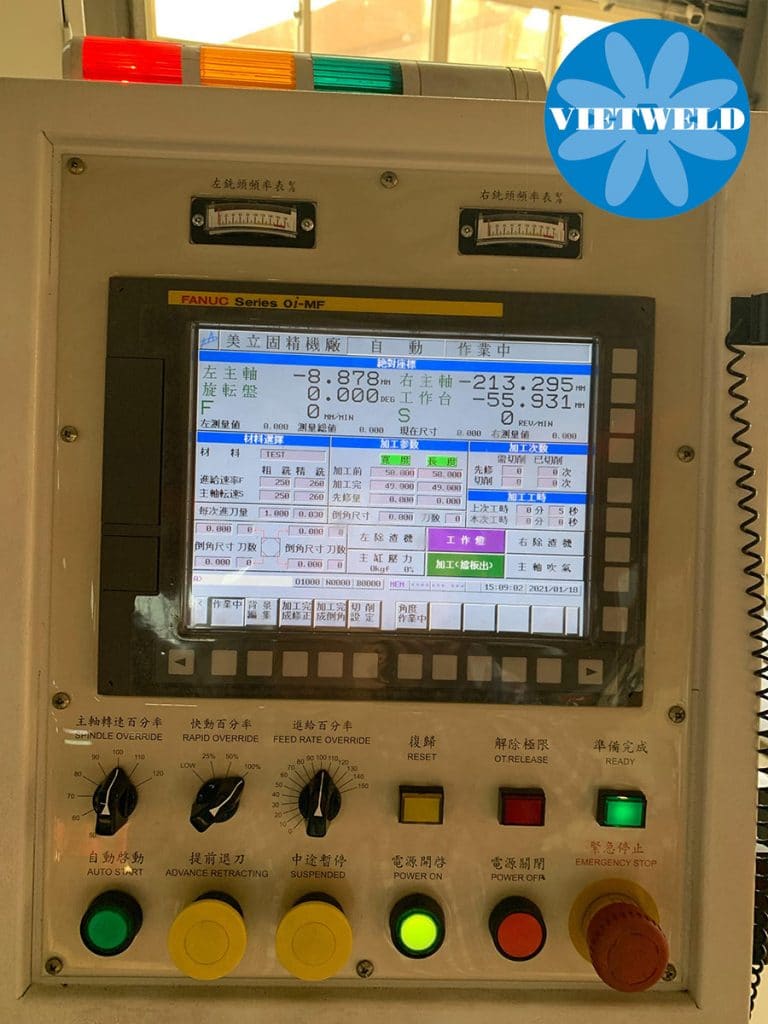

Check out some images of the dual-face milling machine:
