Vacuum lifting device with multi suction pad by CHIA LERN

Does not require external power source, external controls, or any complex accessories. The device generates its own vacuum function to lift objects or sheet metal.
The device can be used in factories, warehouses, and any other environments where items need to be lifted and moved.

Increases productivity in arrangement and movement
High safety for the user
Eliminates device damage and fire/explosion hazards
Eliminates surface damage of the items being transported
Improves storage usage and organization
Simple operation: Reliable and fast up/down motion control, reliable vacuum suction and release control.
Low operating and maintenance costs

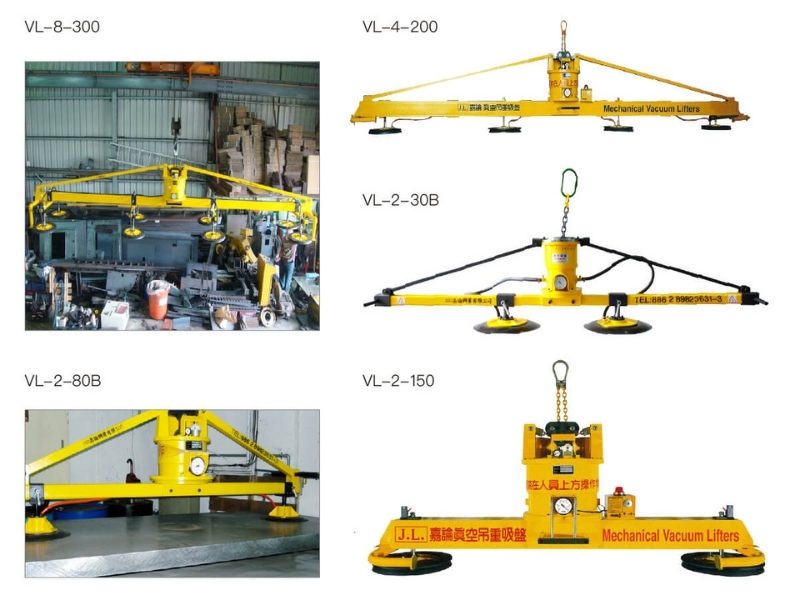

Model No	Capacity	No of pads	OD of Pads	Beam length (mm)	Net weight (kg)
VL-8-300	3000	8	480	6000	1000
VL-4-200	2000	4	480	6000	670
VL-2-150	1500	2	480	2000	200
VL-2-80B	1000	2	480	2000	200
VL-2-30B	300	2	350	2000	70
