ARES MWC Intelligent Welding Cobot System
1. ARES MWC Cobot – Integrated Robotic Welding System for Modern Factories
The ARES MWC (Light Welding Workstation) cobot is a fully integrated automatic robotic welding solution, specifically designed for small and medium-sized mechanical workshops looking to enter the era of automated production without investing in complex infrastructure. Unlike bulky traditional robotic welding systems that require a large installation area and a team of specialized engineers, the MWC station integrates all components into a compact, mobile cabinet – ready to operate in just a few hours.
This system belongs to the product line of ARES Robot (Yooheart) – a leading Chinese industrial robot brand with over 10 years of experience, over 30,000 robots supplied to the market, and international ISO 9001 and CE certifications.
2. Why Do Businesses Need Automatic Robotic Welding Systems?
The shortage of skilled welders, escalating labor costs, and increasing demands for consistent weld quality are real pressures that mechanical workshops and steel structure fabrication plants face daily. Automatic welding robots emerged as an inevitable solution:
✓ Work 24/7 without resting – double or triple night shift production
✓ Absolutely uniform weld seams – minimize defect and scrap rates
✓ Eliminate health risks for welders – no exposure to welding fumes, UV rays, high temperatures
✓ Fast payback in 12–24 months due to savings in labor and raw materials
✓ Independent of individual skill levels – consistent product quality over time
3. ARES MWC Welding Cobot – Configuration & Outstanding Features

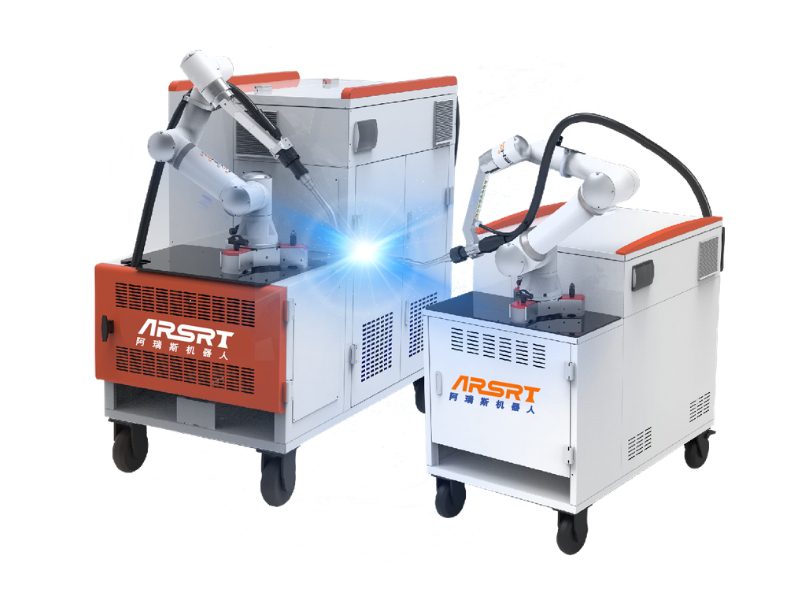

3.1. Two Versions to Meet Every Need
The MWC welding cobot is available in two versions, allowing customers to choose based on their specific work requirements and investment budget:
MWC-A (Water-Cooled): Water-cooled version, applied for thick material welding applications requiring a large 500A power source. Dimensions L1240×W660×H1210mm, weight 280kg.

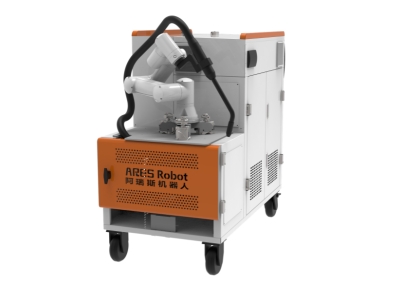

MWC-B (Air-Cooled): Air-cooled version, more flexible in movement and installation, suitable for welding thin carbon steel sheets. Dimensions L1110×W660×H1075mm, weight 220kg.
3.2. Complete System Configuration
Each MWC welding cobot comes pre-integrated with all necessary equipment as follows:
✓ ARES 6-axis robot arm (optional ARS1003F, ARS1005F, or ARS1010F)
✓ Magnetic base – flexible robot fixing, no floor drilling required
✓ Aotai / Kende 350A–500A industrial welding power source
✓ Water/air-cooled welding gun corresponding to each version
✓ Built-in Wire Feeder
✓ Cooling water tank (Water-Cooled version)
✓ Complete welding cables and control cables

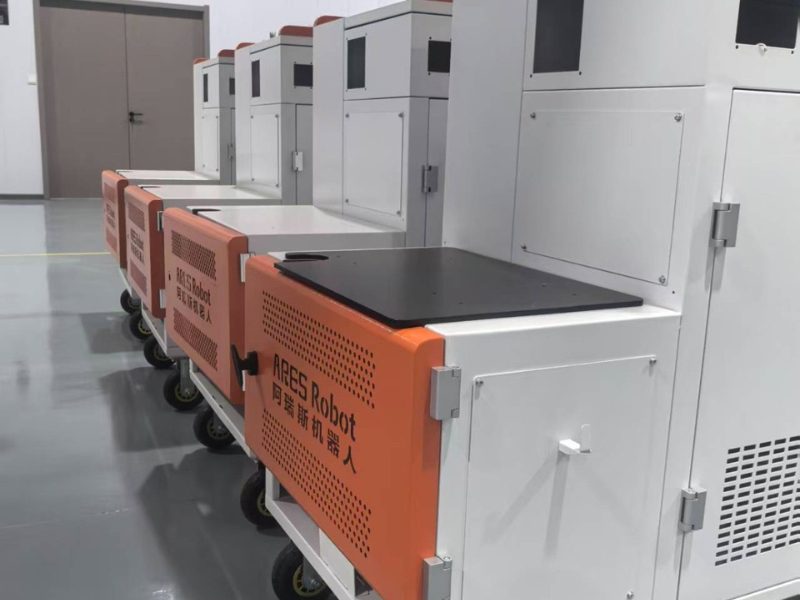

✓ Mobile electrical cabinet – electronic control panel, pipeline package
✓ Robot controller with an 8″ Teach Pendant screen
✓ Yunhua intelligent welding software – AI-integrated welding programming system
✓ Yunhua Intelligent Welding Process Package
4. Supported Welding Techniques:
The ARES MWC welding cobot supports a variety of postures and welding types according to industrial standards, meeting most requirements of the mechanical – structural industry:
✓ Flat Butt Welding
✓ Flat Fillet Welding
✓ Internal Angle Welding
✓ Fillet Welding
✓ Vertical Position
✓ Multi-layer & Multi-channel Welding – suitable for thick details

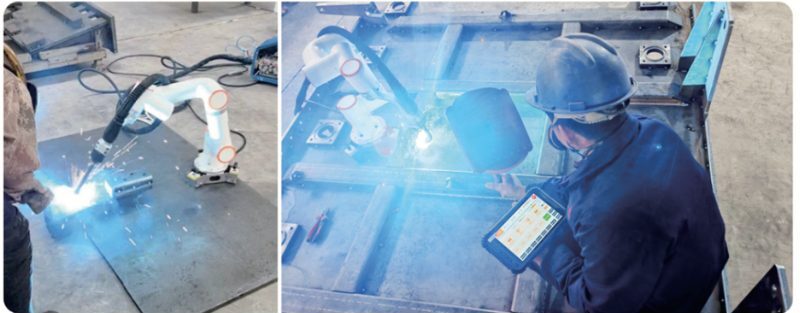

5. Typical Industries & Applications
The MWC robotic welding station is being effectively deployed in many heavy industrial manufacturing sectors in Vietnam.
Construction & bridge steel structures
Welding beams, columns, crossbars, and bracing for pre-engineered steel buildings, industrial warehouses, and factory projects. A repeatability of ±0.02mm ensures consistent weld quality across the entire batch.
Shipbuilding & marine structures
Welding hull plates, deck structures, and ship frames with multi-layer capability and difficult postures. Water cooling on the MWC-A version ensures high-intensity continuous operation.
Mechanical manufacturing – metal fabrication
Welding frames, brackets, machinery, and equipment. The 500A water-cooled welding gun handles thick steel and materials requiring high heat input well.
Power & energy
Welding electric poles, steel truss structures for power transmission lines, antenna masts. Stable welding speed helps better control thermal deformation compared to manual welding.
Steel bridges & infrastructure projects
Applied to bridge structures, steel bridge decks, box girders with high weld quality requirements and strict NDT inspection capabilities.
6. Outstanding Advantages of ARES MWC Welding Cobot
A. Mobile & Fast Deployment
The entire system is integrated into a mobile cabinet with wheels. The magnetic base allows fixing the robot in various positions without drilling the floor or laying a foundation. The time from receiving the machine to starting production is only measured in hours.
B. User-friendly programming – no expert required
Yunhua software supports two programming modes: Drag Teaching and intuitive graphical programming. Ordinary mechanics can master the system after 1–2 days of training. Crisp 8″ touch screen Teach Pendant, clear English/Chinese interface.
C. Complete Industrial Connectivity
Supports TCP/IP, Modbus, and WiFi – easy integration into the factory’s MES, SCADA systems. Allows remote monitoring, welding data collection, and real-time productivity analysis.
D. Quality of Industrial Welding Power Source

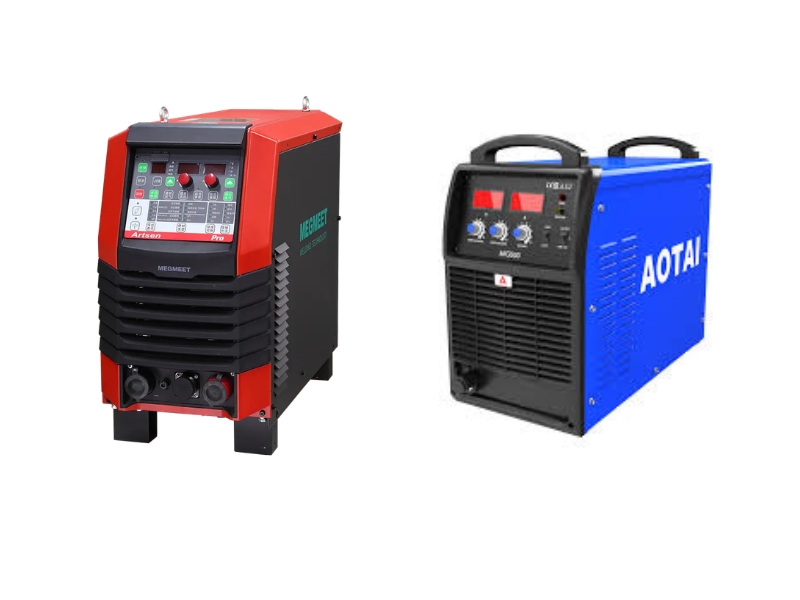

Aotai/Kende 350A–500A welding power sources are reputable brands in the industrial welding industry, ensuring a stable arc, minimal spatter, suitable for welding carbon steel from thin sheets to thick structures.
E. ARES Technology Platform – 10 Years of Accumulation
ARES robots use self-developed RV reducers, proprietary control systems with over 100 patents. Over 30,000 robots are operating globally. ISO 9001 and CE certifications ensure international export standards.
6. Comparison: MWC Welding Cobot vs. Manual Welder
Criteria | ARES MWC Station | Manual Welder
Productivity / shift | 300–500% compared to manual | Depends on skill & physical strength
Weld Quality | 100% uniform, ±0.02mm repeatability | Fluctuates by person, working hours
Night shift work | 24/7 unlimited | Requires allowance, hard to recruit
Occupational risks | No – robot replaces human | Welding fumes, UV rays, thermal burns
Long-term cost | Decreases over time | Increases with salary & allowances
Payback | 12–24 months | Not applicable

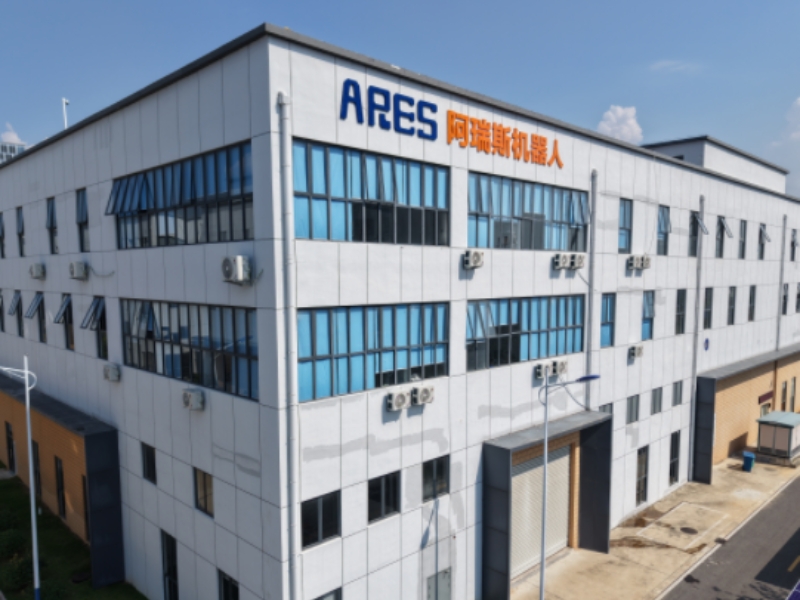

7. Manufacturer – ARES Robot (Xuancheng Ares Intelligent Robot Co., Ltd.)
Full Name: Xuancheng Ares Intelligent Robot Co., Ltd.
Brand: ARES Robot – Yooheart
Headquarters: Building A3, Electronic Information Industrial Park, Economic and Technological Development Zone, Xuancheng City, Anhui Province, China
Mission: “Making Robots Accessible to Every Factory”
Experience: Over 10 years of developing purely domestic Chinese industrial robots
Scale: Over 30,000 industrial robots supplied to the global market
Intellectual Property: Over 100 technical patents of various types
Certifications: ISO 9001, CE – international quality and safety standards
Core Technology: Self-developed RV reducers, proprietary control system, Yunhua intelligent welding software
8. Frequently Asked Questions (FAQ)
1. What materials is the MWC welding cobot suitable for?
The system is optimized for carbon steel welding, suitable for the vast majority of steel structure applications in construction, bridges, and mechanical manufacturing. The 350A–500A welding power source allows processing from thin plates to thick details requiring multi-layer welding.
2. What is the minimum required installation area?
The most compact MWC-B station, measuring L1110×W660mm, requires a minimum of about 3×4m for safe operation, including the robot’s operating space and the workpiece placement area. This is a significant advantage over traditional welding robots which often require a separate welding booth.
3. How long does operation training take?
Thanks to the Yunhua software with its drag-and-drop and graphical programming interface, ordinary mechanics can grasp the basic operations in 1–2 days. Programming more complex weld seams requires 3–5 days of practical training.
